Modern poultry farm operators face immense pressure to maximize yield per square foot while strictly managing feed waste, flock health, and daily egg output. Traditional manual floor-raising methods and slatted floor setups consistently fall short in commercial environments. These older methods suffer from high feed waste, inconsistent egg collection, and severe disease transmission risks driven by direct manure contact. Furthermore, the labor requirements for manual feeding and egg gathering become completely unsustainable at scale. Managing a flock of 50,000 birds on the floor requires massive manpower and constant supervision. The modern engineered chicken cage system solves these exact challenges. It enables high-density farming through precise mechanical automation, replacing unpredictable floor management with synchronized feeding, watering, and waste removal. This infrastructure sets up a technical exploration of automated components, structural variations, and criteria for commercial evaluation.
Mechanized Efficiency: Modern systems rely on automated feeding, watering, and egg collection to drastically reduce labor costs, lower the Feed Conversion Ratio (FCR), and boost overall egg output.
Waste & Disease Management: Elevated wire structures and integrated manure belts separate birds from waste, significantly reducing mortality rates, ammonia levels, and egg contamination.
Structural Variations: Choosing between A-frame and H-frame configurations dictates facility footprint, ventilation requirements, and overall scalability.
Lifecycle Specificity: Cage designs must be tailored to the flock's purpose, with distinct structural differences between layer cages, pullet rearing cages, and broiler systems.
Regulatory Compliance: The transition from the traditional poultry battery cage system to enriched or colony cages is a critical evaluation factor driven by global animal welfare regulations.
Vertical stacking optimizes floor space in commercial sheds. Facilities utilize the vertical airspace instead of just the ground footprint. Commercial sheds typically install configurations ranging from 3 to 8 tiers. The specific height depends on the ceiling clearance, structural load capacity of the concrete slab, and the shed's ventilation capacity. Walkways between the cage rows allow operators to inspect the flock and perform routine maintenance on the feeding equipment.
Wire mesh dimensions are engineered precisely for bird safety and waste management. The bottom mesh typically uses 12-gauge or 14-gauge galvanized wire. It must support bird weight safely without causing footpad dermatitis or bumblefoot. The gaps in the floor mesh, often measuring 1 inch by 2 inches, allow waste to fall through efficiently to the manure belt below. Side mesh panels prevent escape while maximizing airflow across the birds. This spatial arrangement dictates the total bird capacity of the building, allowing operators to calculate exact stocking densities.
A commercial poultry cage system adapts directly to specific production goals. Manufacturers alter the structural dimensions and mechanical accessories based on the bird's lifecycle stage.
Layer Configurations: These setups feature sloped floors angled between 7 and 9 degrees. This slope ensures rapid egg collection immediately after laying. The design prioritizes egg safety, utilizing flexible baffle boards to slow the egg's momentum before it hits the collection belt.
Pullet Configurations: Pullet cages focus entirely on bird growth, housing chicks from day one until they reach laying age (around 16 weeks). These cages offer adjustable feeding access. Operators raise the feed troughs and water lines manually or via winches as the birds grow taller, ensuring ergonomic access to nutrition.
Broiler Configurations: Meat birds grow fast and weigh significantly more than layers. Broiler cages require heavier structural support, often utilizing thicker steel frames and reinforced floor mesh. These setups also integrate automated bird harvesting mechanisms. Floors slide out or drop, moving heavy birds onto wide conveyor belts that transport them directly to transport crates at the end of the shed.

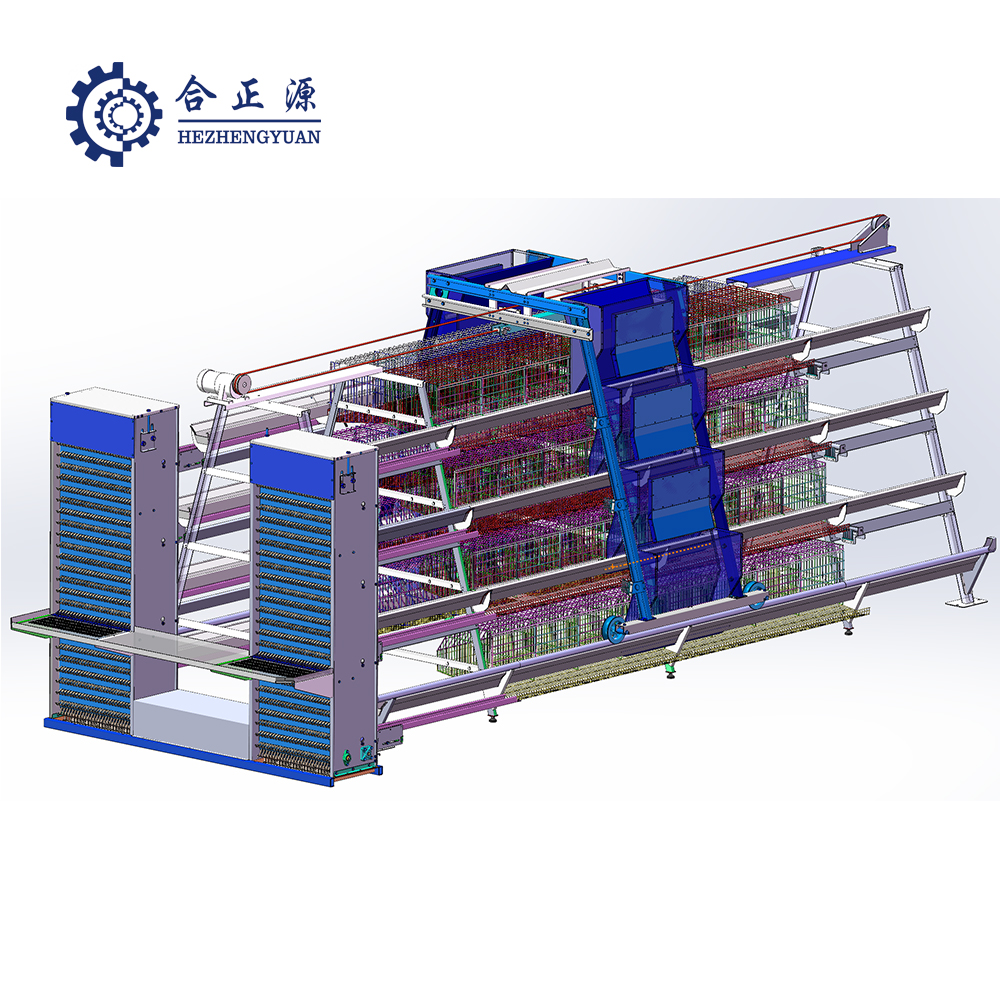

Facility managers must choose between two primary structural layouts. A-Frame structures look like stepped pyramids. Each tier sits slightly behind the one below it. Manure drops directly into a deep pit or onto a scraper board. They rely on natural or basic mechanical ventilation. Operators use them frequently for medium-scale facilities in open-sided houses. The footprint requires wider aisles, limiting maximum density.
H-Frame setups stack cages straight up vertically. They represent the standard for high-density operations. Manure belts sit directly under each tier to catch waste. This straight vertical alignment maximizes the number of birds per square meter. Advanced climate control is absolutely mandatory here. Tunnel ventilation and cooling pads must push air through the dense cage rows to prevent heat stress.
System Characteristic | A-Frame Configuration | H-Frame Configuration |
|---|---|---|
Vertical Alignment | Stepped, pyramid-like structure | Straight vertical stacking |
Ventilation Requirement | Natural or basic mechanical airflow | Strict tunnel ventilation required |
Manure Management | Pit scrapers or drop boards | Integrated PP manure belts per tier |
Bird Density | Moderate (requires wider aisles) | Maximum (high-density footprint) |
Equipment Cost | Lower initial capital expenditure | Higher initial capital expenditure |
Traditional designs used basic sloped floors where eggs rolled into simple metal troughs. These conventional cages prioritized maximum density above all else. Birds had minimal space to move, and the environment lacked behavioral enrichment. Modern standards demand different structural approaches driven by consumer pressure and legislative action.
An updated poultry battery cage system often transitions to enriched or colony designs. These updated cages include dark nesting boxes that provide laying privacy. Soft scratch pads allow natural foraging behavior, and integrated perches meet modern animal welfare standards by allowing birds to roost. The footprint per bird increases, often requiring 116 square inches or more per hen. Production efficiency remains high because the automated feeding and collection mechanics stay intact. Operators must balance these welfare features with their target production metrics and facility dimensions.
Feed distribution relies on highly calibrated mechanical systems. Traveling hoppers distribute feed across the rows. They move along top rails above the cages, dropping precise amounts of feed through dispensing tubes into the troughs below. Leveling plates on the hoppers ensure an even feed depth, preventing dominant birds from hoarding rations. Flat chain systems also work well for distribution. A drive motor pulls a continuous steel chain through the troughs, dragging feed along at speeds of up to 12 meters per minute. Both methods spread rations evenly across all tiers. V-shaped troughs minimize feed waste. Birds cannot easily flick feed out of a deep V-shape, which directly protects the farm's feed budget.
Water delivery relies on closed PVC pipe systems, typically 22mm square pipes. Birds access 360-degree stainless steel nipple drinkers installed inside the cage. They peck the metal pin to release water at a controlled flow rate of 30 to 40 milliliters per minute. Drip cups sit below each nipple. They catch excess water drops before they hit the manure belt. This prevents manure moisture buildup. Dry manure is critical for ammonia control and belt longevity. Pressure regulators installed at the front of each row keep the water flow consistent across cage rows that can stretch over 100 meters long.
Floors slope at exactly 7 to 9 degrees. This specific angle allows eggs to roll out safely without cracking. They move under a baffle board and stop on the collection belt. This immediate separation boosts hygiene. Eggs avoid contact with feces or dirt. Manual washing needs drop significantly, and clean eggs command better market prices.
Longitudinal conveyor belts, typically made of woven polypropylene, run along the front of every tier. The woven design allows dust and small debris to fall through rather than accumulating on the belt. Drive motors move eggs forward to the end of the row. A central cross-conveyor handles the final transport. It gathers eggs from all rows and moves them to the packing room. Deflectors and soft nylon brushes guide the eggs around 90-degree corners. Human handling decreases to near zero. Damage rates fall drastically compared to manual gathering, often keeping micro-cracks below 0.5 percent.
H-frame setups use polypropylene (PP) belts measuring 1.0mm to 1.2mm in thickness. These belts sit directly beneath each tier, supported by steel rollers. They catch all droppings from the birds above. Drive motors pull the belts to the end of the row every two to three days. Rubber-coated drive rollers prevent the belts from slipping under heavy loads. Stainless steel scrapers tensioned against the rollers clean the belt as it turns over. The waste falls onto a cross-conveyor for immediate removal from the shed.
A-frame setups rely on scraper mechanisms in the concrete pit below the cages. Heavy steel blades drag manure to the end of the building using a cable or chain drive. Automated removal clears waste rapidly. Shed ammonia levels drop immediately, often staying well below the target threshold of 10 parts per million (ppm). Respiratory health improves across the flock. Dry, frequently removed manure also holds higher value as agricultural fertilizer, creating a secondary revenue stream for the farm.
High-density housing generates intense biological heat. Thousands of birds create massive moisture and thermal loads. Facilities integrate heavy-duty 50-inch fiberglass exhaust fans at one end of the shed. Cellulose cooling pads, typically 150mm thick, sit at the opposite end. As fans pull air out, fresh air pulls through the wet pads, lowering internal temperatures through evaporative cooling.
Automated environmental controllers manage this entire process. Sensors monitor temperature, humidity, and static pressure inside the shed. The controller stages the fans, turning them on or off to maintain an air velocity of 2.5 to 3.0 meters per second across the birds. The entire automatic chicken cage system depends on this climate synchronization. If ventilation fails, heat stress occurs rapidly, and mortality spikes within hours.
Feed represents the largest ongoing expense in poultry farming, often accounting for 70 percent of total operational costs. V-shaped troughs prevent billing out and spillage. Automated rationing delivers precise amounts based on flock age and production phase. These features directly improve the FCR. Birds consume what they need without wasting it in the litter. Floor-raised birds waste far more feed through scratching and contamination. Cage setups allow operators to measure feed intake accurately per row using load cells on the silos. This data helps nutritionists adjust feed formulas quickly to match the flock's exact metabolic needs.
Controlled environments stabilize production cycles. Birds experience consistent lighting programs, temperature, and nutrition. Automated collection boosts total output by preventing egg eating by the flock. Floor eggs become non-existent. Premium egg cleanliness remains consistent daily. The conveyor belts deliver eggs directly to grading machines. Hairline cracks reduce because eggs do not pile up in nests or get trampled by other hens. Uniformity in egg size and shell quality improves, leading to higher pack-out rates for Grade A eggs.
Separating birds from feces offers massive epidemiological benefits. The physical barrier between the bird and the manure belt breaks the lifecycle of many common pathogens.
Coccidiosis rates plummet because birds cannot peck at infected droppings.
Internal parasite transmission stops almost entirely, reducing the need for chemical dewormers.
Footpad dermatitis decreases significantly because birds stand on clean wire, not wet, ammonia-soaked litter.
Respiratory distress drops due to continuous dust and ammonia removal via the ventilation system.
Operators use less medication. Veterinary interventions drop. The flock maintains a stronger immune system due to lower environmental stress, resulting in lower cumulative mortality rates over the laying cycle.
Centralized monitoring reduces daily physical workloads. One operator can manage 50,000 birds easily. Automated tasks handle feeding, watering, and waste removal. Workers focus on flock observation, culling sick birds, and equipment maintenance instead of manual labor. Scalability becomes a straightforward mathematical calculation. Adding another shed means replicating the equipment layout and hiring one more technician. Labor costs do not scale linearly with bird numbers. This efficiency drives profitability in large commercial operations, allowing farms to expand rapidly without facing severe labor shortages.
Upfront costs are substantial. Galvanized steel cages require heavy investment. Manufacturers use hot-dip galvanization, applying a thick zinc coating (often 275g/m2) to protect the metal from corrosive ammonia. Automated machinery, feed silos, cross-conveyors, and backup generators add to this initial burden. However, long-term ROI justifies the expense. Labor costs shrink immediately. Feed waste drops by measurable percentages. Production volume increases dramatically per square meter. The equipment typically pays for itself within a few production cycles. Operators must secure adequate financing based on projected efficiency gains and reduced mortality rates.
Installing non-compliant setups carries severe financial risks. Global legislation is phasing out conventional bare cages. Many regions ban them entirely, refusing to allow eggs from these systems into retail supply chains. Operators must evaluate enriched options before building. Convertible cage-free systems future-proof the facility. These systems allow doors to open, letting birds move through the shed while retaining automated feeding and collection. Understanding local laws prevents forced retrofits. Buyers must demand compliance certificates from equipment manufacturers to ensure the cage dimensions meet regional welfare codes.
Fully automated operations face severe power vulnerabilities. Outages cause catastrophic losses rapidly. Ventilation stops, and temperatures soar. Redundant power supplies are non-negotiable. Backup generators must activate instantly via automatic transfer switches, typically within 30 seconds of a grid failure. Moving parts require strict maintenance schedules.
Farm staff must grease bearings on drive motors monthly.
Technicians must check manure belts for proper alignment to prevent fraying on the steel frames.
Operators must flush water lines weekly to prevent biofilm buildup in the pressure regulators.
Maintenance teams must test the automatic transfer switch for the generator under load conditions.
Spare parts inventory must remain stocked on-site. Keeping extra belts, nipple drinkers, and fan motors prevents minor breakdowns from halting production.
Conduct a comprehensive site audit to verify existing ventilation capacity and electrical load limits before selecting a cage configuration.
Request specific material durability specifications from suppliers, prioritizing hot-dip galvanized steel over cold galvanized options for maximum lifespan.
Consult with equipment manufacturers to develop custom layout designs that match your exact shed dimensions and local climate conditions.
Calculate the required backup generator capacity for peak load times, ensuring it can handle all fans, belts, and feeding motors simultaneously.
A: A-frame systems use a stepped, pyramid design requiring wider aisles and relying on simpler ventilation. H-frame systems stack vertically to maximize bird density per square meter. Because of this dense footprint, H-frames require advanced mechanical tunnel ventilation and automated manure belts under each tier to maintain air quality.
A: Cage systems offer higher bird density and complete separation from manure. They eliminate floor eggs and reduce feed waste. Slatted floors allow birds to move freely but suffer from higher disease transmission risks, increased ammonia exposure, and require significantly more manual labor for egg collection and flock management.
A: Floors slope at 7 to 9 degrees. Eggs roll out from under the birds onto a longitudinal woven polypropylene conveyor belt. This belt moves eggs to the end of the row. A cross-conveyor then transports them directly to the packing room, eliminating manual gathering and reducing shell damage.
A: Legality depends entirely on the region. Many countries have banned conventional bare battery cages. Modern regulations often require enriched cages. These include nesting boxes, perches, and scratch pads to meet animal welfare standards while maintaining automated production efficiency and high-density housing benefits.
A: H-frame systems use automated polypropylene (PP) belts under each tier to transport waste out of the shed every few days. A-frame systems typically use mechanical steel scrapers located in concrete manure pits beneath the cages. Both methods remove waste frequently to control ammonia and improve respiratory health.
A: High-quality hot-dip galvanized steel cages typically last 15 to 20 years. The thick zinc coating resists corrosion from highly acidic chicken manure and shed humidity. Cold galvanized systems have a shorter lifespan and rust much faster, requiring replacement sooner in high-humidity environments.
A: Automated traveling hoppers or chain feeders distribute precise rations. Deep V-shaped troughs prevent birds from flicking and wasting feed into the litter. Because birds move less and stay in a climate-controlled environment, they convert more feed directly into egg production rather than burning calories for heat or foraging.
